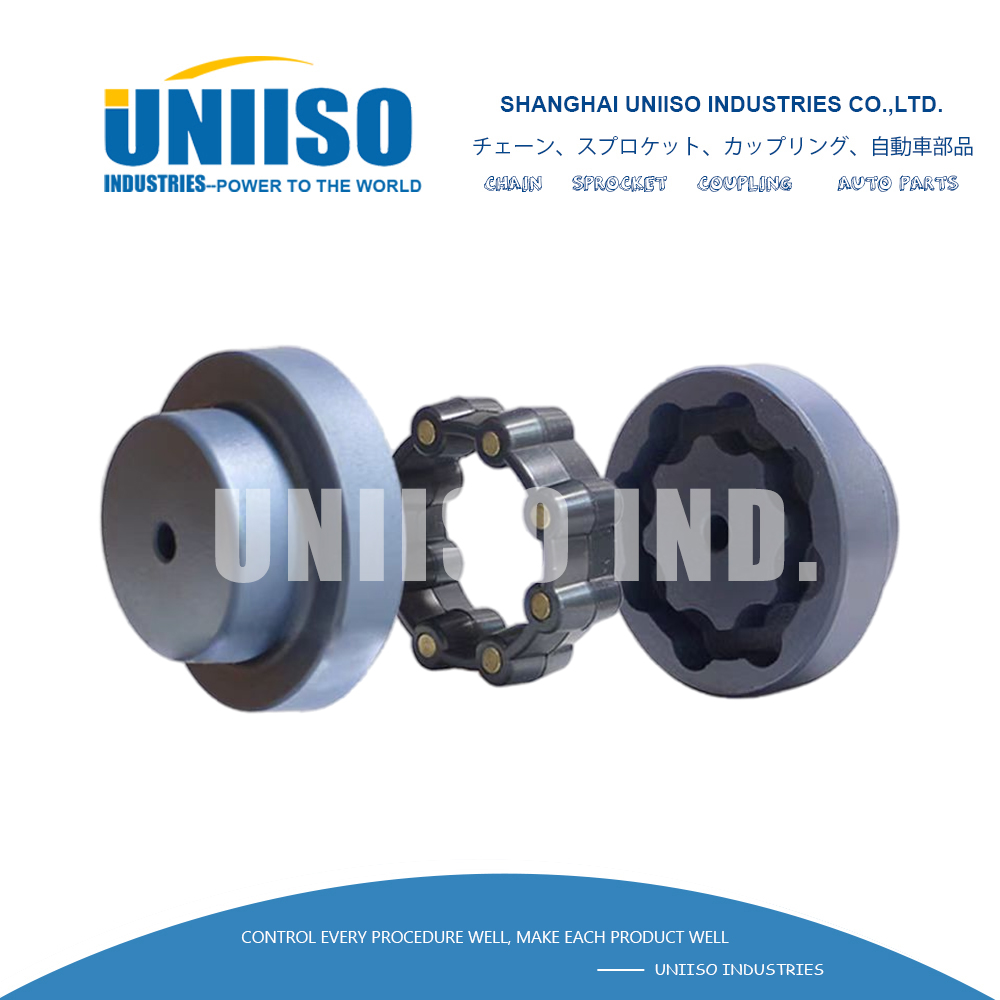

MH coupling
1. Made of high grade cast iron.
2. NBR rubber material: excellent oil resistance, similar to TM, ACM and fluororubber.
Good wear resistance, heat resistance, aging resistance and air tightness.
Basic acid-base resistance.
3. Working temperature: – 40 ~ + 120 ÂșCConstruction:
MH super flexible rubber couplings are precisely produced by a special designed synthetic rubber with 2 similar bodies of cast iron
Cast iron flange:
Designed not only for the power transmission but also for protection of flexible rubber
Flexible rubber:
Made of rubber and steel cores are inserted in the teeth so as to provide excellent durability and performance of coupling.
MH super flexible rubber couplings are precisely produced by a special designed synthetic rubber with 2 similar bodies of cast iron
Cast iron flange:
Designed not only for the power transmission but also for protection of flexible rubber
Flexible rubber:
Made of rubber and steel cores are inserted in the teeth so as to provide excellent durability and performance of coupling.
Applications:
Pumps, fans, compressors, vehicles, transporting equipments, constructors, cement mixers, tractors, transmission machines, metal working machines, rollers, and other transmissions.
Features:
Economical and practical using
Quiet and smoothly operation
Easy installation and maintenance
Available to machines with high torque and intermittent operation
